Home Tablet PCs Mobile Point-of-Sales Systems

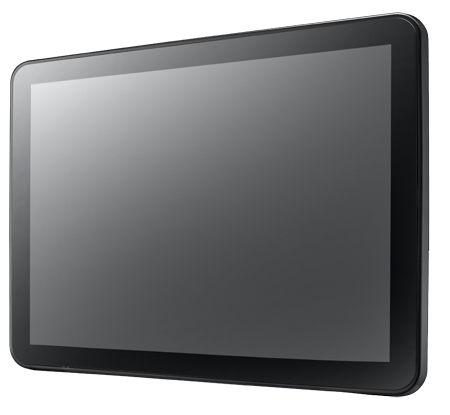

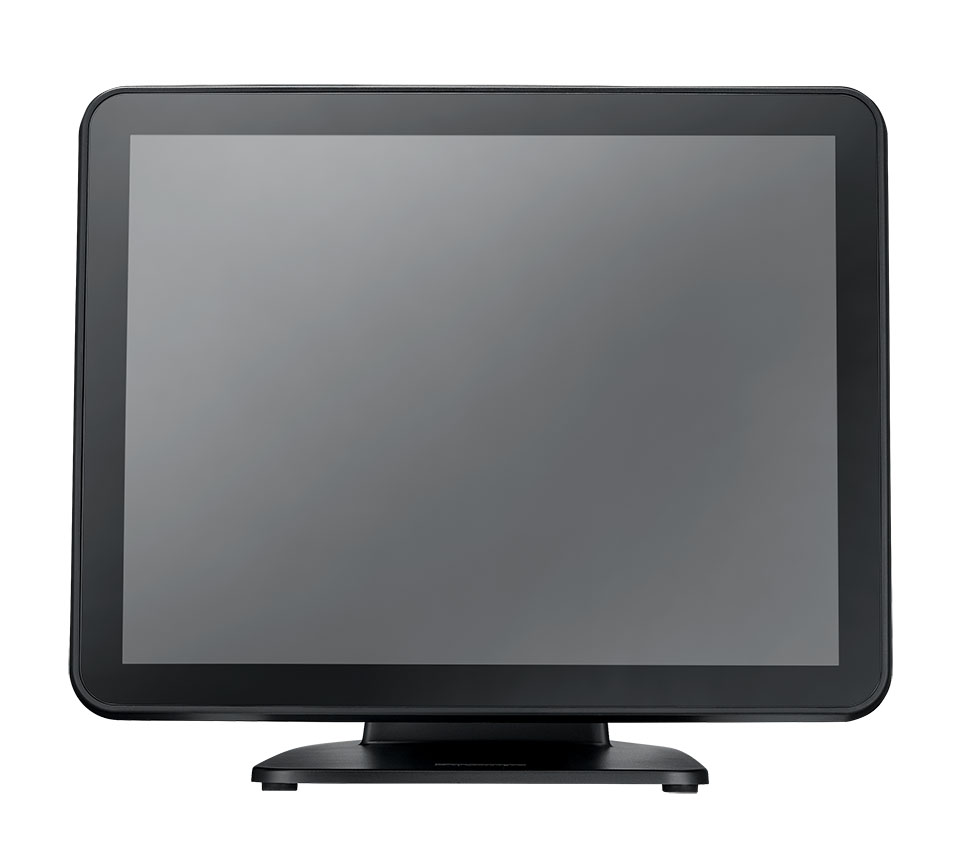

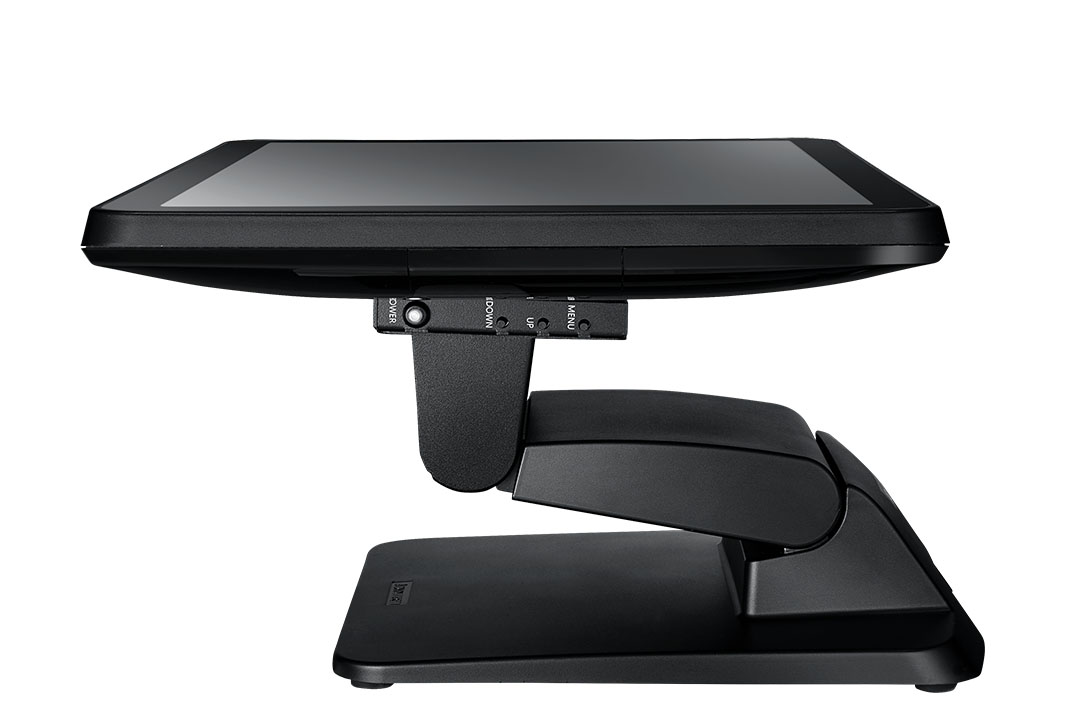

UPOS-M15P-AST01 15" 4:3 monitor P-touch HDMI VGA BK W/cables

15" 4:3 monitor P-touch HDMI VGA BK W/cables
  • 15" 4:3 monitor P-touch HDMI VGA BK W/cables
  • 15" 4:3 monitor P-touch HDMI VGA BK W/cables
  • 15" 4:3 monitor P-touch HDMI VGA BK W/cables
  • 15" 4:3 monitor P-touch HDMI VGA BK W/cables
  • 15" 4:3 monitor P-touch HDMI VGA BK W/cables
  • 15" 4:3 monitor P-touch HDMI VGA BK W/cables
  • 15" 4:3 monitor P-touch HDMI VGA BK W/cables
  • 15" 4:3 monitor P-touch HDMI VGA BK W/cables
  • 15" 4:3 monitor P-touch HDMI VGA BK W/cables
  • 15" 4:3 monitor P-touch HDMI VGA BK W/cables

  1. 15.1" TFT display in LED backlight
  2. Flat and borderless front P-CAP touch panel design
  3. IP65 on front panel
  4. Reserved side hatch for optional module
  5. 75 x 75mm VESA mount
  6. VGA / HDMI(optional) input
  7. Build in speaker
Resouces
Resources Download
DatasheetDownloadManualExtended Specifications
Please visit via PC to place order/quote

AUD 758.00

2 years extended warranty
Make an inquiry Add to Quote Add to Cart
Specifications
Category
Attribute
Value
Processor System
OSD Control
OSD control buttons
Display
Brightness
250 cd/m² (optional 400 nits)
Display
Max. Resolution
15" TFT LCD (LED backlight) / 1024 x 768
Touch Screen
Type
P-CAP
Color
Color
Black
I/O Interface
Output
1 x VGA port, 1 x HDMI port
I/O Interface
Speaker
2 x 2W Speaker
Power
Input Rating
12V 25W Adapter
VESA Mounting Patterns
VESA Mounting Patterns
75 x 75 mm
Enviroment
Operating Humidity
10 ~ 95% @ 40°C non-condensing
Enviroment
Operating Temperature
0~40° C
