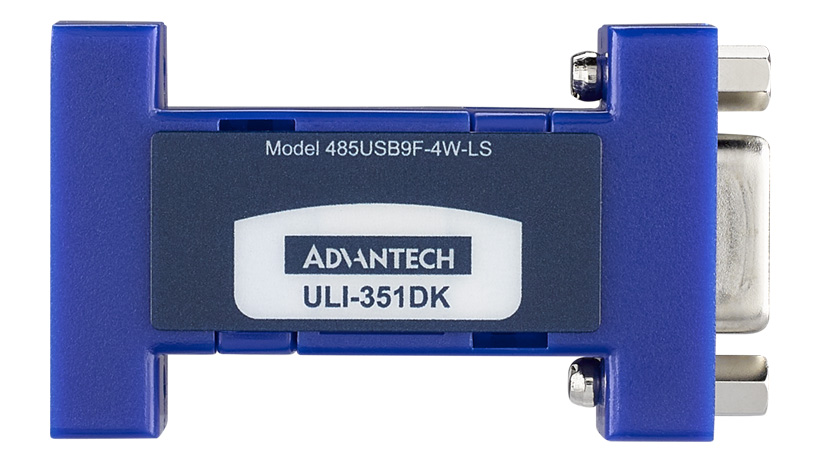

BB-485USB9F-4W-LS USB TO SERIAL 1PT 485, 4 WR DB9F -LOCKE

USB TO SERIAL 1PT 485, 4 WR DB9F -LOCKE
  • USB TO SERIAL 1PT 485, 4 WR DB9F -LOCKE

  1. Connect RS-485 devices to your USB port
  2. Locked Serial Number
  3. Perfect for field service applications
  4. Small – fits easily into any laptop bag
  5. USB port powered
  6. USB 2.0 (12 Mbps) compatible
  7. RS-485 data rates up to 921.6 kbps
  8. Supports Windows XP, 7 (32/64 bit), 8 (32/64 bit), 8.1 (32/64 bit), 10 (32/64bit)
Certifications
CE CE CE
Resouces
Resources Download
DatasheetDownloadDriverExtended Specifications
Please visit via PC to place order/quote

AUD 189.00

99 years extended warranty
Make an inquiry Add to Quote Add to Cart
Specifications
Category
Attribute
Value
General
Mounting
Inline
General
Power
Bus Powered
General
Serial Connector
DB9 Female
General
Serial Port Count
1
General
Serial Type
RS-485 4-wire
General
Technology
USB
General
Temperature
0 to 70C
USB Communication
Locked Serial Number
Yes
Power
Power Input (USB)
Port-Powered from USB host (5 VDC)
Serial Communication
Maximum Serial Transmission Speed
921.6 Kbps
Serial Communication
Serial Port Connector Type
DB9 Female
Serial Communication
Serial Standard
RS-485
Environment
Temperature (Operating Range)
0 ~ 70°C (32 ~ 158°F)
Accessory General
Mounting
Inline
Upstream USB Port
Connector Type
Type B (Female)
Upstream USB Port
Maximum Transfer Rate
Full-Speed (12 Mbps)
Upstream USB Port
Port Number
1
Upstream USB Port
Standard
USB 2.0
